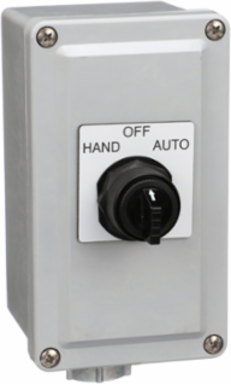

Square D 9001SKY111 CONTROL STATION + OPERATORS
- MPN: 9001SKY111
- UPC: 785901154174
- PPN: SCH-9001SKY111
CAD
$325.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CONTROL STATION + OPERATORS
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Color Of Cover
- grey
Housing Colorgrey
Important Information Attributes
- Environmental Characteristic
- dust and oil resistant, resistant against immersion in water
- Connections - Terminals
- direct connection 2 AWG) solid stranded, direct connection 12 AWG) solid stranded, direct connection 24 AWG) solid stranded
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Contact Block Name
- KA1
- Dc Control Voltage
- 125-600 V
- Enclosure Material
- polymeric
- Mechanical Interlocking
- without mechanical interlock
- Product Or Component Type
- control station
- Provided Equipment
- label plate HAND-OFF-AUTO
- Returnability
- No
- Ac Control Voltage 50 Hz
- 125-600 V
- Number Of Command Positions
- 1
- Number Of Contacts As Normally Open Contact
- 1
- Color Of Cover
- grey
- Pep Code
- ENVPEP1210030EN
- [Ie] Rated Operational Current Ac
- 10 A
- Enclosure/Cubicle Description
- wall-mounted enclosure 1 cut-out Ø 30 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509025
Level Or ClassClass II Division 2 Group G, class III
Local Data StatusPublishable
Return IndicatorN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Connector Typescrew clamp connector
Control Station Composition1 selector switch 1 NO + 1 NC
Device Short Name9001KY
Housing Materialmetal
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationfor hoisting and mechanical handling applications
Range Of ProductHarmony 9001KY
Sustainable PackagingNo
Ac Control Voltage 60 Hz125-600 V
Number Of Contacts As Normally Closed Contact1
Number Of Selector Switches1
Housing Colorgrey
Certificate AgencyUL Listed
[Ue] Rated Operational Voltage600 V
Emergency Power Off (Epo)no
Package Weight(Lbs)843.682 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1210030EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1210030EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Nema Degree Of ProtectionNEMA 4/13
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- control station
- Range Of Product
- Harmony 9001KY
Provided Equipmentlabel plate HAND-OFF-AUTO
ETIM
- ETIM 8
- EC000225
ETIM 9EC000225
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
