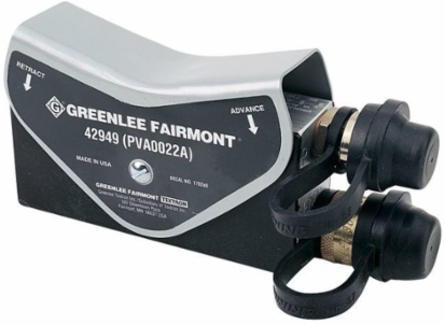

Greenlee PVA0022 Control Valve, 4-Way, 3-Position Valve for Double-Acting Tool, High Pressure Quick (Disconnects Included)
- MPN: PVA0022
- UPC: 783310429494
- PPN: GRN-PVA0022
CAD
$2789.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control Valve, 4-Way, 3-Position Valve for Double-Acting Tool, High Pressure Quick (Disconnects Included)
Features
- May be directly connected to the tool or used remotely with hoses
- Compact 4-way, 3-position valve
- 3,000 - 4,000 psi (207 - 275 bar) return line ground dump safety valve
- Controlled advance and built-in hold feature
- Single-acting valve available to use with existing single-acting tools
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 7.500 IN
- Weight
- 2.800 LB
- Input Flow Range
- 3 - 8 GPM (12 - 30 LPM)
- Port Size Inlet
- 1/4 - 18 NPTF, 1/4 - 18 NPSM Tool
- Type
- High Pressure Hydraulic, 4 Way, 3 Position
Width2.000 IN (44.000 MM)
Height3.500 IN (89.000 MM)
CouplersHigh Pressure Quick-Disconnects Included, 10000 PSI (700 BAR)
Operating Pressure10000 PSI (700 BAR) Return Relief
Return Pressure5000 PSI (350 BAR)
