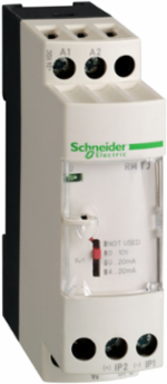

Schneider Electric RMTJ60BD Harmony Analog Thermocouple Converter, 0...300 °C, 0-20 mA Output
- MPN: RMTJ60BD
- PPN: SCH-RMTJ60BD
CAD
$255.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Harmony Analog Thermocouple Converter, 0...300 °C, 0-20 mA Output
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Analog
- Product Or Component Type
- converter for thermocouples
Analogue Output Typecurrent 0...20 mA <= 500 Ohm || current 4...20 mA <= 500 Ohm || voltage 0...10 V >= 100 kOhm
Analogue Input Typethermocouple 0...300 °C/32...572 °F thermocouple J IEC 60584
Complementary
- Current Consumption
- <= 40 mA voltage output || <= 60 mA current output
- Measurement Error
- +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 1 % of full scale 20 °C
- Clamping Connection Capacity
- 2 x 1.5 mm² || 1 x 2.5 mm²
- Local Signalling
- power ON LED green)
- Protection Type
- overvoltage protection on output (+/- 30 V) || reverse polarity protection on output || short-circuit protection on output
- Marking
- CE
- Net Weight
- 0.12 kg
- Tightening Torque
- 0.6-1.1 N.m
- Repeat Accuracy
- +/- 0.25 % full scale 20 °C || +/- 0.8 % full scale 60 °C
Safety Reliability DataB10d = 45447 || MTTFd = 49.2 years
Surge Withstand0.5 kV 1.2/50 µs IEC 61000-4-5
Cold Junction Compensationbuilt-in between 0 and 60 °C
Temperature Coefficient200 ppm/°C
[Ui] Rated Insulation Voltage2 kV
Analogue Output Voltage-15...-11 V no input or input wire broken || 11...15 V no input or input wire broken
Fixing Modeby screws (mounting plate) || clip-on (35 mm symmetrical DIN rail)
Analogue Output Current-30-0 mA no input or input wire broken
[Us] Rated Supply Voltage24 V DC +/- 20 %, non isolated
Environment
- Disturbance Radiated/Conducted
- CISPR 22 group 1 - class B || CISPR 11
- Pollution Degree
- 2 IEC 60664-1
- Standards
- IEC 60584-1 || IEC 60947-1
- Resistance To Electrostatic Discharge
- 6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
Product CertificationsCSA || GL || UL
Ambient Air Temperature For Storage-40-85 °C
Ambient Air Temperature For Operation0-50 °C mounting side by side || 0-60 °C 2 cm spacing
Fire Resistance850 °C IEC 60695-2-1 || 850 °C UL
Vibration Resistance5 gn 10-100 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP20 terminal block) || IP50 housing)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1607005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1607005EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
