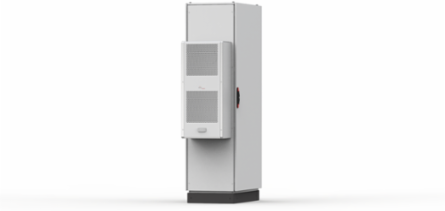

nVent Hoffman CUVN40502SS Vertical Cooling Unit 4050W, 230V, Stainless Steel, IP54, 20.12 Inch Width
- MPN: CUVN40502SS
- UPC: 783510462888
- PPN: HOF-CUVN40502SS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This vertical cooling unit, CUVN is available in many different sizes for different cooling requirements. This Vertical Mounted Cooling Units, CUVN, CUVN40502SS item measures 1217x511x347mm has a material of Steel color Unpainted, finish Plated.
Features
- Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
- Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
- The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
- The smart energy management and ease of installation will reduce both operational and installation costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
- Once installed, the door switch will turn the cooling unit off, once the door is opened
- Voltage: 200-235 V
- Alternating current frequency: 50~60 Hz
- Power of the fan: 22 Watt
- Consumption current: 0.28A / 0.56A
- Air circulation: 4.4 / 8.8 m³/min
- Measurement limits: -50 ºC ... +125 ºC
- Measurement accuracy: +/-0.5ºC
- Working temperature: 0...+50ºC
- Relative air humidity (air temp. +35C): 80%
- Noise level: 35 decibel
- Lifetime: 30.000 hours
- Switch: No
- Thermostat: Yes
- Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
Documentation & Downloads
Specifications
Key Specifications
- Length
- 48.29 inch
- Height
- 20.74 inch
- Height imperial (H) (inch)
- 47.91
- Width imperial (W) (inch)
- 20.12
- Depth imperial (D) (inch)
- 13.66
- Protection Rating
- IP54
- Finish WCS-6868
- Plated
- Style WCS-6918
- Cooling capacity L35L35: 4000 - 4100; L35L50: 3000 - 3300
- Frequency WCS-429335 (hertz)
- 50/60
Width20.49 inch
Weight205.20 pound
Height metric (H) (millimetre)1,217
Width metric (W) (millimetre)511
Depth metric (D) (millimetre)347
MaterialSteel
ColorUnpainted
Phase Quantity1
