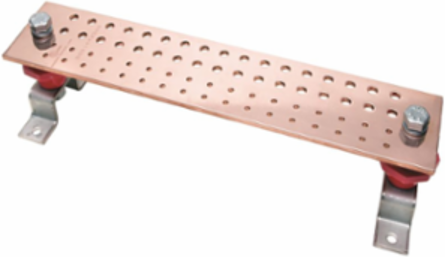

Burndy BBB14420J Copper Busbar 1/4 Inch x 4 Inch x 20 Inch, 68 Holes, UL Listed for Grounding
- MPN: BBB14420J
- UPC: 781810489390
- PPN: BUR-BBB14420J
- UNSPSC: 39121117
CAD
$615.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Copper Busbar, 34. Can be used as a common ground point and power applications.
Features
- Bare Copper Busbar
- UL Listed for Grounding
- Many sizes and hole patterns available
Specifications
Key Specifications
- Country of Origin
- United States
- Dimension - Bar Length mm
- 508 mm
- Dimension - Bar Thickness mm
- 6 mm
- Dimension - Bar Width mm
- 102 mm
- Dimension - Hole Size mm
- 11 mm
- Dimension - Width inch
- 4.00 in
- Physical Attribute - Number of Holes
- 68
- Standards - RoHS Compliance Status
- CM
- Sub Brand
- BUS BAR
- ARRA Compliant
- Yes
- Class Code
- B41
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Replaced Catalog Number
- BBB14420J
- Sub Class Code
- B41BDLF
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810489390
- Each - Pack Description
- Each
- Standard Package Quantity
- 1
Dimension - Bar Length inch20 in
Dimension - Bar Thickness inch0.25 in
Dimension - Bar Width inch4 in
Dimension - Hole Size inch0.44 in
Dimension - Width fraction4 in
Width4.00 in
Product TypeMechanical
ApplicationFor Use As A Common Ground Point And Power Applications
TypeBBB
Certification AgencyProposition 65
Description - InvoiceBUSBAR 1/4X4X20 68 HOLE
Harmonization Code8536908585
Lead Time11 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
MaterialCopper
BOX SIZE(in)
Each - Number of Sub Packs1
Lowest Level UOMEach
NAICS Code3314203101
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- Yes
- EU RoHS Indicator
- Yes
CSA ApprovedNo
UL RecognizedNo
