Homac L 1-2516 A Copper Comp Lug No1
- MPN: L 1-2516 A
- UPC: 783786738663
- PPN: T-B-L 1-2516 A
- UNSPSC: 39121409
CAD
$83.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

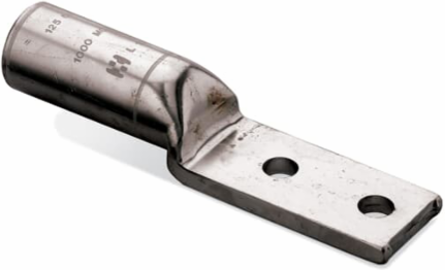

Tin Plated Copper Compression Lug, #1 Stranded Copper. Installing Dies 37, TB, 11, 3/8. Length 3-3/8 inch. Pad 23/32 inch wide x 1-5/8 inch long x 3/32 inch thick. (1) 3/8 inch Diameter hole and (1) 1/8 inch Radius Slot on 7/8 inch center. Barrel 1-1/2 inch long.
Specifications
Additional Information
- Brand / Label
- Homac
- Effective Date
- 20080619
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- Length 3.375 inch. Barrel 1.50 inch.
- Surface Finishing
- Tin Plated
Connection TypeCompression
Insulation MaterialNone
Product TypeCompression Lug Two Hole
Special FunctionsMarked with Conductor Size and Die Reference. One .375 inch Diameter Hole and One Slotted Hole with .187 Radius.
Wire Size#1 STR AWG
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
