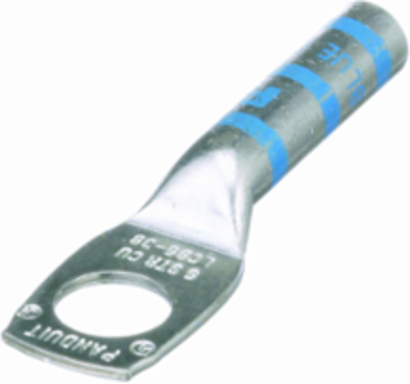

Panduit LCB6-38-L Pan-Lug™ LCB6-38-L Comp. Lug, 6, Long, Tin Plt Cu, Strt, One 0.37" Stud, PK50
- MPN: LCB6-38-L
- UPC: 074983901739
- PPN: PAN-LCB6-38-L
- UNSPSC: 39121405
CAD
$3.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
One-hole, long barrel lug, #6 AWG wire, 3/8 stud hole.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Tongue Width (mm) | 15.7 |
| Wire Strip Length (mm) | 28.6 |
| CSA Temperature Rating (°C) | 90 |
| Barrel Type | Long |
| Base Material | Copper |
| Overall Length (In.) | 2.15 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Color Code | Blue |
| T & B Die Index Number | 24 |
| Wire Strip Length (In.) | 1-1/8 |
| Tongue Type | Standard |
| Stud Hole Size (mm) | 9.5 |
| Number of Stud Holes | 1 |
| Inspection Window | No |
| Any Reason Not to Sell | N |
|---|---|
| Barrel Length (In.) | 1.07 |
| Tongue Thickness (mm) | 1.3 |
| Burndy Die Index Number | 7 |
| Overall Length (mm) | 54.6 |
| Sub Brand | Pan-Lug™ |
| Tongue Width (In.) | 0.62 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 3/8 |
| Panduit Die Index Number | P24 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 27.2 |
| Note | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Product Type | Compression Lug |
| Barrel Entry | Beveled |
| Copper Conductor Size | 6 AWG |
Packaging Details
| UPC | 07498390173 |
|---|---|
| Standard Package Volume Ft3 | 0.0328 |
| Std Package Height In | 3.3 |
| Std Package Length In | 4.75 |
| Std Package Width In | 3.3 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 50 |
| Standard Carton Weight Pounds | 0.0000 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
| GTIN Package | 00074983901739 |
|---|---|
| Standard Package Weight Pounds | 1.2050 |
| Std Package Height MM | 83.82 |
| Std Package Length MM | 120.65 |
| Std Package Width MM | 83.82 |
| UOM EA PK | PK |
| Standard Carton Volume Ft3 | 0.0000 |
| Std Ctn Qty | 0 |
| EAN | 00074983901739 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 1.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
