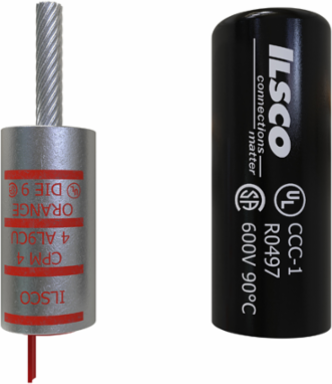

ILSCO CPM-4 Copper Compression Pigtail Adaptor, Conductor Size 4, Tin Plated, UL, CSA
- MPN: CPM-4
- UPC: 783669008425
- PPN: ILC-CPM-4
CAD
$29.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Compression Pigtail Adaptor, Conductor Size 4, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.82 in | 20.828 mm
- Weight
- 0.041 lbs
Length2.875 in | 73.025 mm
Width0.82 in | 20.828 mm
Voltage
- Voltage Rating
- 600 V
Voltage Rating without cover35 kV
Dimensions
- Barrel Length (IN)
- 1.344
- Cover Length (IN)
- 2.094
- Height BX (IN)
- 2
- Inside Diameter (IN)
- 0.247
- Length (mm)
- 73.025
- Outside Diameter (IN)
- 0.65
- Pin Diameter (IN)
- 0.184
- Pin Length (IN)
- 0.875
- Weight BX (LB)
- 2.482
- Width (mm)
- 20.828
Barrel Length (mm)34.1376
Cover Length (mm)53.1876
Height (mm)20.828
Inside Diameter (mm)6.2738
Mounting Hole Spacing (mm)0
Outside Diameter (mm)16.51
Pin Diameter (mm)4.6736
Pin Length (mm)22.225
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number941R
UL File NumberE62525
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- Yes
- ILSCOs Die Catalog Number
- ILD-5
- Number of Conductors
- 1
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index Number9
Replacement Part(s)Cover
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Supplied with insulating cover
Connector FinishTin
MaterialCopper
Conductor Ranges
- Approximate Pin Size
- 6 AWG
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str
Conductor Range AL Stranded (Primary, run, main, line)4 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900842
Carton Quantity DescriptionSTD PACK QTY 25
NEMA CodeS-588-3
Color
- Color
- Silver
Color CodeOrange
Environment and Temperature
- Temperature Rating
- 90°C
