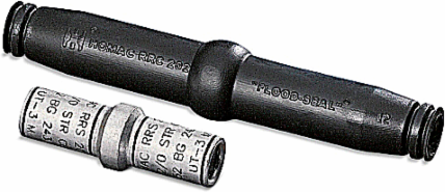

Homac RRK 20 CU Copper Compression Splice
Homac RRK 20 CU Copper Compression Splice
- MPN: RRK 20 CU
- PPN: T-B-RRK 20 CU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.39/ EA
Description
Copper Compression Splice Kits, Wire Range 2/0, Connector Length 3 Inches, Insulator Length 5-1/2 Inches, Dies 5/8 (5), Color Code Gray
Features
- Radiating Rib Design Dissipates Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time.
- Single-Piece Flood-Seal Insulating Covers are Pre-lubricated and Sized fro the Connection.
- Easy Installation Saves You Time and Money
- Exceeds ANSI C119.1 Requirements.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Homac
- Special Features
- Prefilled with Oxide Inhibitor to Prevent Oxidation an Keep Out Moisture. Rubber Flood-Seal Insulating Cover fits Snugly for Maximum Heat Dissipation, No Tape Required. Compact Size. Radiating Rib Design Dissipated Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time.
- Standard
- ANSI C119.4
- Connection
- Compression
- Number Of Conductors
- 2
- Color
- Gray
IGCC4669 Wire or cable compression splice
TypeCopper Compression Splice
ApplicationDissipate Heat and Make Perfect Watertight Seals.
Size3 inch Connector, 5-1/2 inch Cover
Conductor Range2/0 to 2/0
MaterialCopper Connector, Rubber Cover
Insulationyes
Packaging
- Outer Quantity
- 50
- Weight Uom
- 0.26 lbs. Each
Outer Dimensions (inches)13.18x7.75x7
