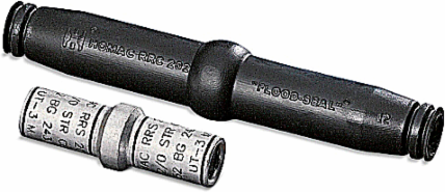

Homac RRK 6 CU Copper Compression Splice
- MPN: RRK 6 CU
- UPC: 075114125437
- PPN: T-B-RRK 6 CU
CAD
$125.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Flood Seal Compression Splice Kit, Radiating Rib Splice kit, #6, Copper
Features
- Radiating Rib Design Dissipates Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time.
- Single-Piece Flood-Seal Insulating Covers are Pre-lubricated and Sized fro the Connection.
- Easy Installation Saves You Time and Money
- Exceeds ANSI C119.1 Requirements.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121449 Wire or cable compression splice |
|---|---|
| Brand Name | Homac |
| Special Features | Prefilled with Oxide Inhibitor to Prevent Oxidation an Keep Out Moisture. Rubber Flood-Seal Insulating Cover fits Snugly for Maximum Heat Dissipation, No Tape Required. Compact Size. Radiating Rib Design Dissipated Heat, Centers the Watertight Insulating Cover and Seals Perfectly Every Time. |
| Standard | ANSI C119.4 |
| Connection | Compression |
| Number Of Conductors | 2 |
| Color | Blue |
| IGCC | 4669 Wire or cable compression splice |
|---|---|
| Type | Copper Compression Splice |
| Application | Dissipate Heat and Make Perfect Watertight Seals. |
| Size | 2 inch Connector, 4-1/8 inch Cover |
| Conductor Range | #6 to #6 |
| Material | Copper Connector, Rubber Cover |
| Insulation | yes |
Packaging
| Outer Quantity | 50 |
|---|---|
| Weight Uom | 0.16 lbs. Each |
| Outer Dimensions (inches) | 7.5x6x6.5 |
|---|
