NSI Industries

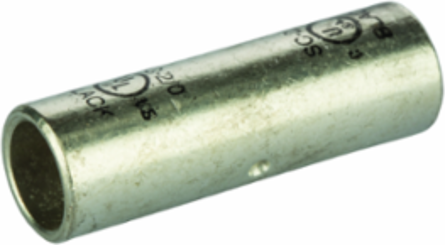

NSI Industries SC-2/0 CU CMP Splice Short 2/0 AWG

  • MPN: SC-2/0
  • PPN: NSI-SC-2/0
  • UNSPSC: 39121449

CAD

$12.11

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

StandardBarrel TinnedCopperSplice2/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Features

  • Produced from high conductivity copper tubing
  • Serrations indicate proper crimp locations
  • Tin-plated to provide corrosion resistance
  • Marked with die index and color coded
  • Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices

Specifications

Key Specifications

Country of OriginIndia
Width0.56 in
Wire/Cable ClassClass B, Class C
Field ApplicationSplice
Future PlanRebrand as Polaris
INNER LENGTH5.8500
INNER WIDTH4.4000
Max Temperature90 C (194 F)
Product AssortmentCopper Compression Splices
Slotted TangNo
VOLTAGE RATING600V
TypeCompression Splice
Barrel Length TypeShort
Barrel Inside Diameter0.44 IN
Barrel Length1.75 IN
Length1.75 in
Height0.56 in
Die Color CodeBlack
FINISHTin Plated
INNER HEIGHT2.5000
INNER WEIGHT1.4450
MATERIALCopper
Pack TypeEa
Product SeriesSC
UL File #E155027
WARRANTY1 Year
Barrel Peep HoleNo
Conductor Rating9CU
Barrel Outside Diameter0.56 IN
Conductor TypeCopper
CU CMP Splice Short 2/0 AWG
