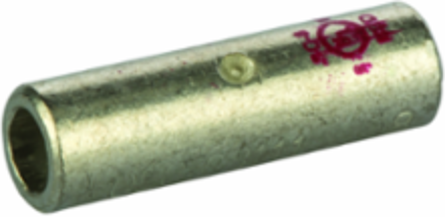

NSI Industries SC-8 Copper Compression Splice - Short - 8 AWG
- MPN: SC-8
- PPN: NSI-SC-8
- UNSPSC: 39121449
CAD
$4.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
StandardBarrel TinnedCopperSplice8 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Features
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| Width | 0.27 in |
| Wire Range | 8 AWG |
| Die Color Code | Red |
| Field Application | Splice |
| Future Plan | Rebrand as Polaris |
| INNER LENGTH | 5.9000 |
| INNER WIDTH | 4.3500 |
| Max Temperature | 90 C (194 F) |
| Product Series | SC |
| Temperature Rating | 90C, 9CU |
| VOLTAGE RATING | 600V |
| Type | Compression Splice |
| Barrel Length Type | Short |
| Barrel Inside Diameter | 0.17 IN |
| Barrel Length | 0.9 IN |
| Length | 0.9 in |
|---|---|
| Height | 0.27 in |
| Wire/Cable Class | Class B, Class C |
| Expanded Wire Range | 8 AWG |
| FINISH | Tin Plated |
| INNER HEIGHT | 2.3500 |
| INNER WEIGHT | 1.0200 |
| MATERIAL | Copper |
| Product Assortment | Copper Compression Splices |
| Slotted Tang | No |
| UL File # | E155027 |
| WARRANTY | 1 Year |
| Barrel Peep Hole | No |
| Conductor Rating | 9CU |
| Barrel Outside Diameter | 0.27 IN |
| Conductor Type | Copper |
