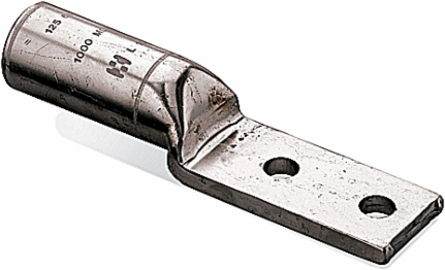

Homac L 500 N-7 Copper Compression Two Hole NEMA Lug
- MPN: L 500 N-7
- UPC: 783786820948
- PPN: T-B-L 500 N-7
CAD
$241.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Compression Lug, 500 kcmil, Copper, Bolt 1/2 inch, Two Hole NEMA Pad, 7 inches long
Features
- Produced from Seamless Electrolytic, High-Conductivity Copper Tubing for High Conductivity and Minimal Voltage Drop.
- Tin Plated to Resist Corrosion
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Homac
- Special Features
- Marked with Conductor Size and Die Reference.
- Conductor Range
- 500 kcmil Copper
- Finish
- Tin Plated
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeCopper Compression Two Hole NEMA Lug
SizeLength 10.875 inch. Pad 1.522 inch Wide x 3.062 inch.
MaterialCopper
InsulationNone
Packaging
- Outer Quantity
- 25
- Weight Uom
- 1.2 lbs. Each
Outer Dimensions (inches)13.37x8.25x7.87
