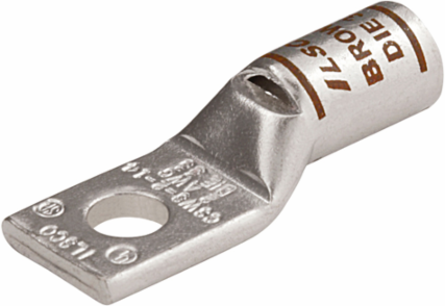

Ilsco CSWS-2-14 Surecrimp Copper Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Ilsco CSWS-2-14 Surecrimp Copper Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-2-14
- UPC: 0783669633016
- PPN: ILC-CSWS-2-14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.76/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.625
- Dimension G (IN)
- 0.321
- Height BX (IN)
- 2.25
- Inside Diameter (IN)
- 0.312
- Length (mm)
- 40.4114
- Mounting Hole Diameter (mm)
- 7.1374
- Outside Diameter (IN)
- 0.421
- Strip Length (mm)
- 17.4498
- Tang Length (mm)
- 17.272
- Tang Thickness (mm)
- 2.7686
- Tang Width (mm)
- 15.2146
- Width BX (IN)
- 5
Barrel Length (mm)15.875
Dimension G (mm)8.1534
Height (mm)11.4554
Inside Diameter (mm)7.9248
Mounting Hole Diameter (IN)0.281
Mounting Hole Spacing (mm)0
Outside Diameter (mm)10.6934
Tang Length (IN)0.68
Tang Thickness (IN)0.109
Tang Width (IN)0.599
Weight BX (LB)1.65
Width (mm)15.2146
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-33
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-33
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str
Expanded Conductor Range2 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366963301
Specifications
- Height
- 0.451 in | 11.4554 mm
- Weight
- 0.0292876528526638 lbs
Length1.591 in | 40.4114 mm
Width0.599 in | 15.2146 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
Color
- Color
- Silver
Color CodeBrown
Environment and Temperature
- Temperature Rating
- 90°C
