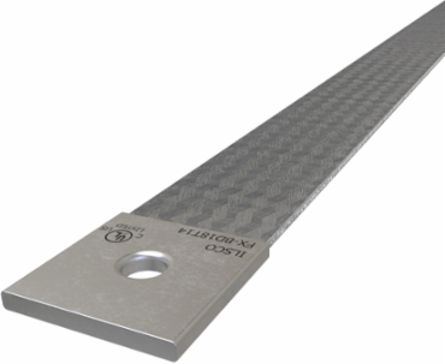

Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 18in, 1 Hole, 1/4in Bolt Size, Tin Plated, UL/cUL
ILSCO

ILSCO FX-BD18T14 Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 18in, 1 Hole, 1/4in Bolt Size, Tin Plated, UL/cUL

  • MPN: FX-BD18T14
  • UPC: 783669017267
  • PPN: ILC-FX-BD18T14

CAD

$137.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 18in, 1 Hole, 1/4in Bolt Size, Tin Plated, UL/cUL

Documentation & Downloads

Specifications

Key Specifications

Height
0.13 in
Weight
0.509388255525457 lbs
Length18 in
Width1.19 in

Dimensions

Dimension G (IN)
0.595
Height BX (IN)
4
Length of Ferrule (mm)
30.226
Mounting Hole Diameter (mm)
7.112
Width BX (IN)
4
Dimension G (mm)15.113
Length of Ferrule (IN)1.19
Mounting Hole Diameter (IN)0.28
Weight BX (LB)0.48

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS Specification
UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Circular Mils/Braid
96000
Number of Braids
1
Shape Of Conductor
Flat
Mounting Hole TypeThru
Number of Mounting Holes1

Material and Finish

Conductor Material
Copper
Material
Copper
Connector FinishTin

Conductor Ranges

Wire Equivalent
1 AWG

Additional Technical Specifications

Connector Amperage Rating CU (Derated where applicable)
190 Amps
Conductor TypeBraid

General

Bag Quantity
1
Dual Rated
No
UPC Code
78366901726
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1

Bolt and Screw Sizes

Mounting Bolt/Stud Size
1/4
