ILSCO

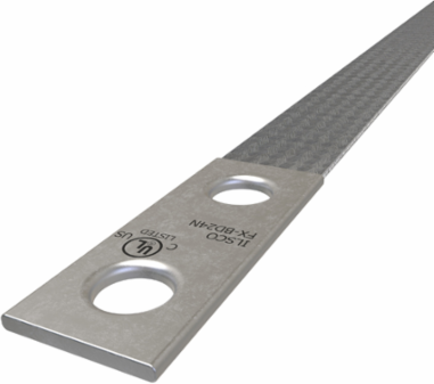

ILSCO FX-BD24N Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 24in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL

Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 24in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL
  • MPN: FX-BD24N
  • UPC: 783669016253
  • PPN: ILC-FX-BD24N

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$128.49/ EA

Description

Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 24in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL

Specifications

Dimensions

Dimension G (IN)
0.62
Height BX (IN)
4
Length of Ferrule (mm)
76.2
Mounting Hole Diameter (IN)
0.56
Mounting Hole Spacing (IN)
1.75
Weight BX (LB)
0.648
Dimension G (mm)15.748
Length of Ferrule (IN)3
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.224
Mounting Hole Spacing (mm)44.45
Width BX (IN)4

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS Specification
UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Circular Mils/Braid
96000
Number of Braids
1
Shape Of Conductor
Flat
Mounting Hole TypeThru
Number of Mounting Holes2

Material and Finish

Conductor Material
Copper
Material
Copper
Connector FinishTin

Conductor Ranges

Wire Equivalent
1 AWG

Additional Technical Specifications

Connector Amperage Rating CU (Derated where applicable)
190 Amps
Conductor TypeBraid

General

Bag Quantity
1
Dual Rated
No
UPC Code
78366901625
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1

Specifications

Height
0.13 in
Weight
0.71116236127362 lbs
Length24 in
Width1.19 in

Bolt and Screw Sizes

Mounting Bolt/Stud Size
1/2
