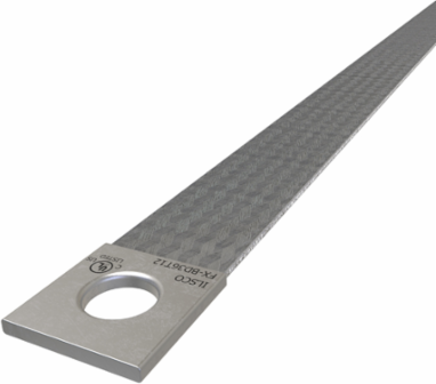

ILSCO FX-BD36T12 Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 36in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-BD36T12
- UPC: 783669008876
- PPN: ILC-FX-BD36T12
CAD
$558.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 1, 1 Braid, 36in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.13 in
- Weight
- 0.951015098076576 lbs
Length36 in
Width1.19 in
Dimensions
- Dimension G (IN)
- 0.595
- Height BX (IN)
- 4
- Length of Ferrule (mm)
- 30.226
- Mounting Hole Diameter (IN)
- 0.56
- Weight BX (LB)
- 1.51
Dimension G (mm)15.113
Length of Ferrule (IN)1.19
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.224
Width BX (IN)4
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 96000
- Number of Braids
- 1
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 1 AWG
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 190 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366900887
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
