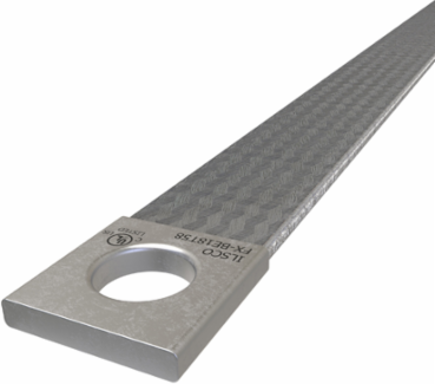

ILSCO FX-BE18T58 Copper Flex Braid Connector, Conductor Equivalent Size 3/0, 1 Braid, 18in, 1 Hole, 5/8in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-BE18T58
- UPC: 783669017359
- PPN: ILC-FX-BE18T58
CAD
$172.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 3/0, 1 Braid, 18in, 1 Hole, 5/8in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.21 in
- Weight
- 1.04510928757719 lbs
Length18 in
Width1.25 in
Dimensions
- Dimension G (IN)
- 0.625
- Height BX (IN)
- 4
- Length of Ferrule (mm)
- 31.75
- Mounting Hole Diameter (mm)
- 16.764
- Width BX (IN)
- 4
Dimension G (mm)15.875
Length of Ferrule (IN)1.25
Mounting Hole Diameter (IN)0.66
Weight BX (LB)1.17
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 168000
- Number of Braids
- 1
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 3/0 AWG
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 340 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366901735
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/8
