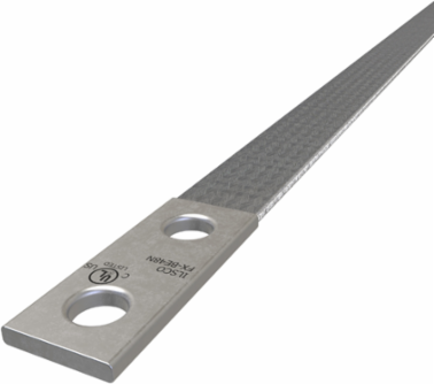

ILSCO FX-BE48N Copper Flex Braid Connector, Conductor Equivalent Size 3/0, 1 Braid, 48in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL
- MPN: FX-BE48N
- UPC: 783669016918
- PPN: ILC-FX-BE48N
CAD
$238.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 3/0, 1 Braid, 48in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.21 in
- Weight
- 2.82547353503608 lbs
Length48 in
Width1.25 in
Dimensions
- Dimension G (IN)
- 0.62
- Height BX (IN)
- 4
- Length of Ferrule (mm)
- 76.2
- Mounting Hole Diameter (IN)
- 0.56
- Mounting Hole Spacing (IN)
- 1.75
- Weight BX (LB)
- 2.736
Dimension G (mm)15.748
Length of Ferrule (IN)3
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.224
Mounting Hole Spacing (mm)44.45
Width BX (IN)4
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 168000
- Number of Braids
- 1
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 3/0 AWG
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 340 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366901691
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
