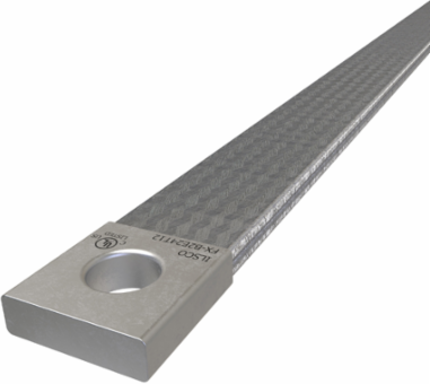

ILSCO FX-B2E24T12 Copper Flex Braid Connector, Conductor Equivalent Size 308, 2 Braids, 24in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-B2E24T12
- UPC: 783669007039
- PPN: ILC-FX-B2E24T12
CAD
$273.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 308, 2 Braids, 24in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.35 in | 8.89 mm |
|---|---|
| Weight | 2.66106529569833 lbs |
| Length | 24 in | 609.6 mm |
|---|---|
| Width | 1.25 in | 31.75 mm |
Dimensions
| Dimension G (IN) | 0.625 |
|---|---|
| Height (mm) | 8.89 |
| Length of Ferrule (IN) | 1.25 |
| Mounting Bolt/Stud Size (mm) | 304.8 |
| Mounting Hole Diameter (mm) | 14.224 |
| Width (mm) | 31.75 |
| Dimension G (mm) | 15.875 |
|---|---|
| Length (mm) | 609.6 |
| Length of Ferrule (mm) | 31.75 |
| Mounting Hole Diameter (IN) | 0.56 |
| Thickness (mm) | 8.89 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL/cUL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Circular Mils/Braid | 336000 |
|---|---|
| Number of Braids | 2 |
| Shape Of Conductor | Flat |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Wire Equivalent | 308 kcmil |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 530 Amps |
|---|
| Conductor Type | Braid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366900703 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| NEMA Code | 0-000-1 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/2 |
|---|
