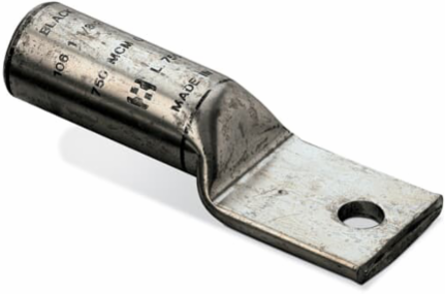

Homac L 250-38 Copper Lug 250 1 hole
Homac L 250-38 Copper Lug 250 1 hole
- MPN: L 250-38
- UPC: 783786738946
- PPN: T-B-L 250-38
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$63.40/ EA
Description
Tin Plated Copper One-Hole Straight NEMA Lugs. wire size 250 kcmil CU. Installing Dies 60, 166, 11/16, 16. Length 3-25/64 inch. Pad 1-1/8 inch wide x 1-7/64 inch long x 7/64 inch thick. (1) 13/32 inch hole. Barrel 1-5/8 inch. CSA. UL Listed.
Specifications
Additional Information
- Application
- General Applications
- Connection Type
- Compression
- Product Name
- ELECTRICAL TERMINAL<1000V
- Size
- 3-3/8 inch X 1-1/8 inch wide
- Standards
- UL E9809. CSA LR35518.
- Wire Size
- 250 kcmil
Brand / LabelHomac
Effective Date20080619
Product TypeCompression Lug One Hole
Special FunctionsTin-Plated to resist corrosion. Produced from seamless electrolytic copper tubing which provides high conductivity and minimizes voltage drop. Marked with a catalog number, conductor sizes and die references.
Surface FinishingTin Plated
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
