ILSCO

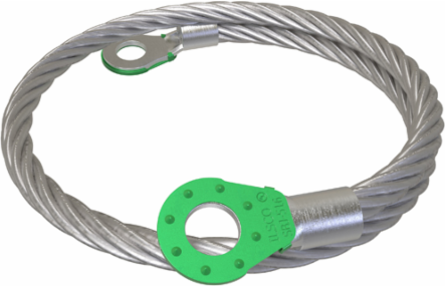

ILSCO SBJ-516-24 Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 24in, UL

  • MPN: SBJ-516-24
  • UPC: 783669007497
  • PPN: ILC-SBJ-516-24

CAD

$29.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 24in, UL

Documentation & Downloads

Specifications

Key Specifications

Height0.399 in | 10.1346 mm
Weight0.366801732646895 lbs
Length24.67 in | 626.618 mm
Width0.67 in | 17.018 mm

Dimensions

Dimension G (IN)0.335
Height BX (IN)3.625
Length (mm)626.618
Mounting Center Line Length (mm)609.6
Mounting Hole Diameter (mm)8.4074
Width BX (IN)6.375
Dimension G (mm)8.509
Height (mm)10.1346
Mounting Center Line Length (IN)24
Mounting Hole Diameter (IN)0.331
Weight BX (LB)19.468
Width (mm)17.018

Testing Standards

Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 2703 Listed, UL 467 Listed
UL Control Number667P
UL File NumberE354420, E34440

Additional Class Attributes

Mounting Hole TypeThru
Number of Poles1
Number of Mounting Holes2
Shape Of ConductorRound

Material and Finish

Conductor MaterialCopper
MaterialCopper
Connector FinishViritium Plated

Conductor Ranges

Wire Equivalent6 AWG

Additional Technical Specifications

Conductor TypeFlex

General

Bag Quantity1
NEMA Code0-000-1
Carton Quantity DescriptionSTD PACK QTY 10
UPC Code78366900749

Bolt and Screw Sizes

Mounting Bolt/Stud Size5/16

Color

Clip ColorGreen
Copper Surface Bonding Jumper, 2 Holes, 5/16in Bolt Size, 24in, UL
