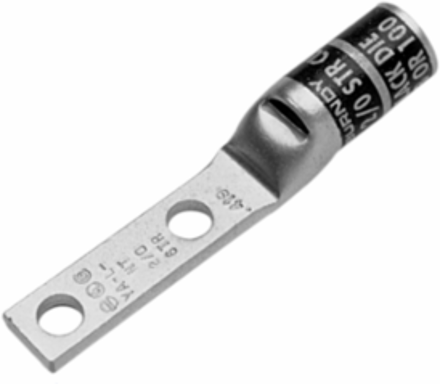

Burndy YA31L2NT38 Copper Terminal Connector, 350 kcmil, 3/8 Inch Bolt Size, 3.51 Inch Length

MPN: YA31L2NT38
UPC: 781810020388
PPN: BUR-50248B

$66.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Flex Conductor Standard Barrel Narrow, 350 kcmil, 3/8 in, 3.51 in L.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1-1/16 in
Dimension - Bolt Hole Size inch	0.39 in
Dimension - D inch	1.82 in
Dimension - Length Overall inch	3.51 in
Dimension - Outside Diameter inch	0.88 in
Dimension - Strip Length inch	1-1/8
Dimension - Z inch	1.41 in

Dimension - B Length inch	1.06 in
Dimension - Bolt Size fraction	3/8
Dimension - L Length Overall mm	89 mm
Dimension - N inch	0.41 in
Dimension - Pad Width inch	0.96 in
Dimension - Stud Size inch	3/8
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Navy Size Range	350 (91) Navy
Conductor - Copper Str Size Range	350 kcmil

Conductor - Copper Str Navy Size	350 (91) Navy
Conductor - Copper Str Size	350 kcmil

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Style	Chamfered
Material	Copper
Plated	Y
Sub Brand	HYLUG
Type	YA-L-2NT, Code Conductor Standard Barrel Narrow Tongue

Color Code	Red
Die Index	18
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810020388
