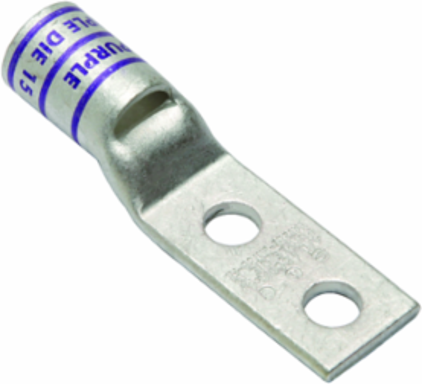

Burndy YAV26L2NT14FX Copper Terminal Connector, 2/0 AWG, 1/4 Inch Bolt Hole, Tin Plated
- MPN: YAV26L2NT14FX
- UPC: 781810285503
- PPN: BUR-26002931
CAD
$49.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, 2/0 AWG 2/0 Weld 325/24, 1/4 in, 2.56 in L.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 13/16 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 1.28 in
- Dimension - L Length Overall mm
- 65 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.76 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.81 in
Dimension - Bolt Size fraction1/4
Dimension - Diameter Min Size inch1.28 in
Dimension - Length Overall inch2.56 in
Dimension - Outside Diameter inch0.63 in
Dimension - Strip Length inch13/16
Dimension - Z inch0.34 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2/0 (375/#24)
- Conductor - Copper Flex G Size
- 2/0
- Conductor - Copper Flex H Size
- 2/0
- Conductor - Copper Flex I Size
- 2/0
- Conductor - Copper Flex K Size
- 2/0
- Conductor - Copper Flex M Size
- 2/0
- Conductor - Copper Str Size
- 2/0
- Conductor - CopperWeld Str Size
- 2/0 F;2/0 G;2/0 J;2/0 K;2/0 V
Conductor - Copper DLO Size Range2/0 (375/#24)
Conductor - Copper Flex G Size Range2/0
Conductor - Copper Flex H Size Range2/0
Conductor - Copper Flex I Size Range2/0
Conductor - Copper Flex K Size Range2/0
Conductor - Copper Str Navy Size125 (61)
Conductor - Copper Str Size Range2/0
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810285503
Color CodeBlack
Die Index13
MaterialCopper
PlatedY
Sub BrandTERMINALS, HYLUG
TypeYAV-L-NTFX
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
