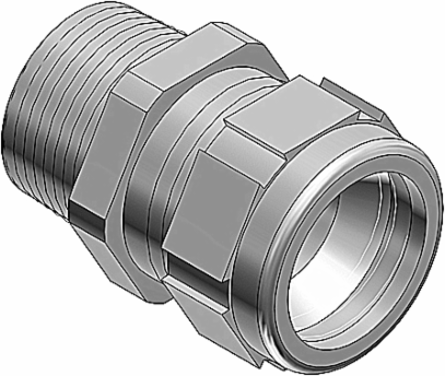

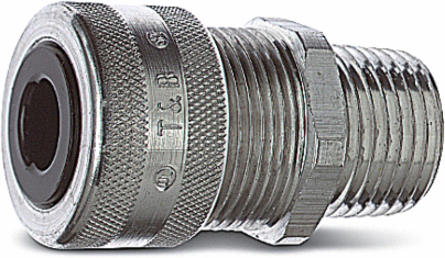

Thomas & Betts 2942AL Cord Connectors-Straight
- MPN: 2942AL
- UPC: 786210797212
- PPN: T-B-2942AL
CAD
$26.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Liquidtight Strain Relief Connector, 1 Inch, Straight, Cord Range 0.700 to 0.950 Inch, Throat Diameter 9/16 Inch, Aluminum Body, Glandnut, and Grip, Rubber Bushing
Features
- Extended range with superior strain relief.
- Reduced overall size, fits into tighter spaces.
- Gland nut designed to restrict cable bending.
- Provide a means for passing a cord cable into an enclosure through a bulkhead
- Suitable for Ordinary, Wet or Dry locations.
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b).
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 100
- Weight Uom
- 16.69 lbs. per 100
Inner Dimensions (inches)6.3x3.2x4.69
Outer Dimensions (inches)24x12.8x4.2
North American Specifications (UNSPSC)
- UNSPSC
- 39121431 Cable gland connector
- Brand Name
- T&B
- Special Features
- Extended Range with Superior Strain Relief
- Standard
- UL E13938, CSA 52391
- Conductor Range
- 0.700 to 0.950 Inch
- Color
- Metallic
IGCC4601 Cable gland connector
TypeCord Connectors-Straight
ApplicationProvide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
Size1 Inch
MaterialAluminum
Environmental ConditionsOrdinary, Wet, or Dry Locations
European Specifications (ETIM)
- ETIM
- EC000441 Cable screw gland
- Nominal thread size inch/gas pipe thread
- 1 inch
- Suitable for cable diameter
- 17.78-24.13mm
- Material quality
- Aluminium
- Model
- Straight
Thread typeNPT
Thread length24.60mm
MaterialMetal
ColourNatural colour
Strain reliefY
