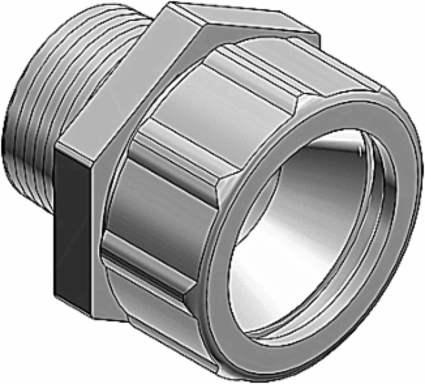

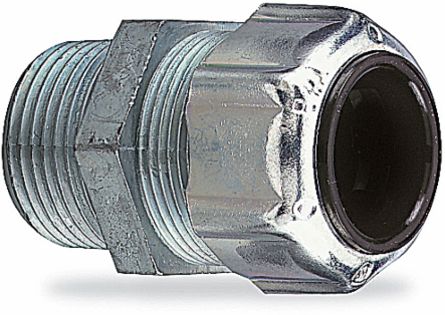

Thomas & Betts 2549 Strain Relief Cord Connectors-Straight
- MPN: 2549
- UPC: 786210025490
- PPN: T-B-2549
CAD
$66.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Liquidtight Strain Relief Cord Connector, 1 Inch, Straight, Cord Range 1.065 to 1.205 Inch, Malleable Iron
Features
- Meets Coast Guard CG293
Specifications
European Specifications (ETIM)
| ETIM | EC000441 Cable screw gland |
|---|---|
| Nominal thread size inch/gas pipe thread | 1 inch |
| Suitable for cable diameter | 27.05-30.61mm |
| Material quality | Other |
| Model | Straight |
| Operating temperature | 0-+105°C |
| Thread type | NPT |
|---|---|
| Thread length | 19.84mm |
| Material | Metal |
| Colour | Natural colour |
| Strain relief | Y |
Packaging
| Inner Quantity | 5 |
|---|---|
| Outer Quantity | 50 |
| Weight Uom | 50.75 lbs. per 100 |
| Inner Dimensions (inches) | 5x4.5x3 |
|---|---|
| Outer Dimensions (inches) | 23.75x13.5x3.75 |
North American Specifications (UNSPSC)
| UNSPSC | 39121431 Cable gland connector |
|---|---|
| Brand Name | T&B |
| Special Features | Meets Coast Guard CG293 |
| Standard | UL E13938, CSA |
| Conductor Range | 1.065 to 1.205 Inch |
| Color | Metallic |
| IGCC | 4601 Cable gland connector |
|---|---|
| Type | Strain Relief Cord Connectors-Straight |
| Application | Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by NEC 501-4(B). |
| Size | 1 Inch |
| Material | Malleable Iron |
| Temperature Rating | 105 Degrees C |
