Schneider Electric BMXFTW301 Modicon M340 Cord Set with 20-Way Terminal, 3 Meter Length

MPN: BMXFTW301
PPN: SCH-BMXFTW301

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$113.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

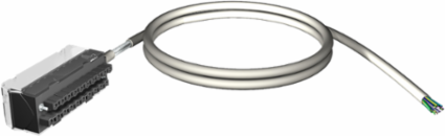

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 16-channel I/O modules with removable terminal block. It enables the connection between the I/O of modules with 20-way removable terminal block and the sensors, preactuators. It is equipped with one 20-way spring-type removable terminal block and one end with color-coded flying leads. It is 3 meters long.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Thailand, Tunisia, United States

Physical Attributes

Cable Length	3 m

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Cables	1
Range Of Product	Modicon X80
Sustainable Packaging	No
Wire Section	0.324 mm²
Accessory / Separate Part Destination	for I/O module with removable terminal block
Accessory / Separate Part Designation	preformed cordset with one end with flying leads
Package Weight(Lbs)	492.000 g
Warranty (In Months)	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Local Publishable Date	2026-07-27
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	No
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2411005EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Electrical Connection	1 end with color-coded flying leads DIN 471001 removable terminal block 20 ways
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Total Number Of Wires	20
Pep Code	ENVPEP2411005EN
Accessory / Separate Part Type	preformed cordset
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544422000

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2411005EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2411005EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2411005EN
