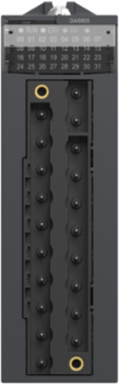

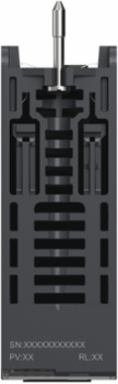

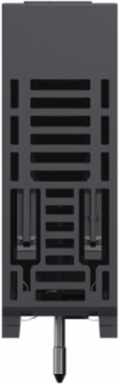

Schneider Electric BMXDAI0805 discrete input module, Modicon X80, 8 inputs, 200 to 240V AC
Schneider Electric BMXDAI0805 discrete input module, Modicon X80, 8 inputs, 200 to 240V AC
- MPN: BMXDAI0805
- PPN: SCH-BMXDAI0805
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$479.75/ EA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 200V AC to 240V AC, a current consumption of 76mA at 3.3V DC, 93.6mA at 24V DC and a power dissipation 4.73W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Specifications
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 154.8 mA 24 V DC, <= 154.8 mA 24 V DC, <= 154.8 mA 24 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 154.8 mA 24 V DC, <= 154.8 mA 24 V DC
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Marking
- CE, UKCA, cULus, RCM, EAC
- Voltage Detection Threshold
- > 164 V AC sensor OK, > 164 V AC sensor OK, > 164 V AC sensor OK, > 164 V AC sensor OK, < 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, > 164 V AC sensor OK, > 164 V AC sensor OK, > 164 V AC sensor OK, > 164 V AC sensor OK, < 80 V AC sensor fault, < 80 V AC sensor fault
- Voltage State 1 Guaranteed
- >= 159 V, >= 159 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.3 kg CO2 eq., 0.2768101818
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 20 kg CO2 eq., 19.9320727273
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Ac Activation Filtering Time
- 10 ms
- Device Application
- Industrial Application
- Isolation Between Channels And Bus
- 1500 V for 1 minute
- Power Dissipation In W
- 4.73 W
- Product Or Component Type
- discrete input module
- Range Of Product
- Modicon X80
- Sensor Power Supply
- 170-264 V
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional Unit Unit
- Unit
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In 2
- 3
- Pn
- 1
- Width Nominal
- 32 mm
- Water Use M3 Eq Manufacturing A1 A3 2
- 55265.6
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current State 1 Guaranteed>= 4 mA, >= 4 mA
Local Signalling1 LED (green) for module operating (RUN), 1 LED per channel (green) for channel diagnostic, 1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Typical Current Consumption76 mA, 93.6 mA
Voltage State 0 Guaranteed<= 40 V, <= 40 V
Carbon Footprint Of The Distribution Phase A40.0203991273, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0415394909, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B613 kg CO2 eq., 12.8918199067
Local Publishable Date2026-01-23
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ac Deactivation Filtering Time20 ms
Dielectric Strength1500 V AC 50/60 Hz 1 min
Mtbf Reliability1700000 H
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective Treatmentstandard version
ReturnabilityNo
Shock Resistance30 gn
Sustainable PackagingYes
Vibration Resistance3 gn
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y210
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Offer Owner Code190786
Height Nominal103.7 mm
Certificate AgencyIEC 61131-2
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
China Rohs RegulationX
Carbon Footprint33.1626414339
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Frequency
- 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
- Discrete Input Current
- 10.4 mA at 200...240 V AC
- Input Impedance
- 21000 Ohm
Discrete Input Number8 isolated conforming to IEC 60947-5-2 at 200...240 V AC, 8 isolated conforming to IEC 61131-2 Type 2 at 200...240 V AC, 8
Discrete Input Voltage200...240 V DCisolated
Input Wiring Mode2 or 3 wires
Specifications
- Country of Origin
- Brazil, France, United States
Depth86 mm
