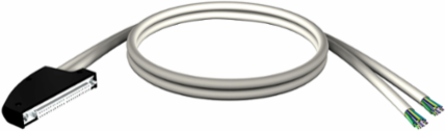

Schneider Electric BMXFCW503 Modicon M340 Cordset, 40-Way Terminal, 5m Length, 1.49 kg
- MPN: BMXFCW503
- PPN: SCH-BMXFCW503
CAD
$309.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two-end color-coded flying leads (conforming to DIN 47100) for electrical connection. It weighs 1.49kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon M340 automation platform discrete I/O modules. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Tunisia, United States
Physical Attributes
- Cable Length
- 5 m
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Electrical Connection
- 1 connector 40 ways, 2 ends with color-coded flying leads DIN 47100
- Certificate Agency
- CSA C22.2 No 142, EN/IEC 61131-2, UL 508
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1851
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Awg Gauge
- AWG 22
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Total Number Of Wires
- 40
- Pep Code
- ENVPEP1312019EN
- Accessory / Separate Part Type
- preformed cordset
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Relative Impedance10 MOhm <= 50 V, 100 MOhm 50...250 V
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Number Of Cables2
Range Of ProductModicon X80
Sustainable PackagingNo
Wire Section0.324 mm²
Accessory / Separate Part Destinationfor I/O module with 40-way connectors
Accessory / Separate Part Designationpreformed cordset with one end with flying leads
Package Weight(Lbs)1.441 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1312019EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1312019EN
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Modicon X80
ETIM
- ETIM 8
- EC000237
ETIM 9EC000237
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
