Schneider Electric BMXFCW501S Modicon X80 Shielded Cord Set with 40-Way Connector, 5m Length

MPN: BMXFCW501S
PPN: SCH-BMXFCW501S

$309.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

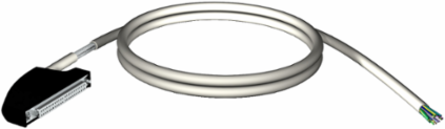

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for module side and free end color-coded flying leads (conforming to DIN 47100) for electrical connection. It weighs 0.71kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon X80 BMXART0414 and BMXART0814 analogue input module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Tunisia, United States

Physical Attributes

Cable Length	5 m

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Pep Code	ENVPEP1312019EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544422000

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Local Publishable Date	2026-07-21
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	No
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Electrical Connection	1 connector 40 ways module side1 free end with color-coded flying leads terminal block analogue sensor
Range Of Product	Modicon X80
Sustainable Packaging	No
Accessory / Separate Part Type	preformed cordset
Package Weight(Lbs)	634.000 g
Warranty (In Months)	18

Environment Attributes Main

Product Compatibility	BMXART0414, BMXART0814
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1312019EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1312019EN
