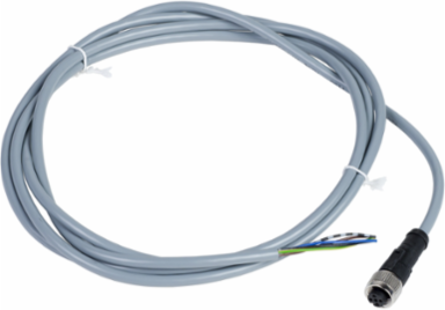

Telemecanique Sensors XZCPV1164L2 Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m
Telemecanique Sensors XZCPV1164L2 Pre wired connectors XZ, straight female, M12, 5 pins, cable PVC 2 m
- MPN: XZCPV1164L2
- PPN: TES-XZCPV1164L2
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$56.73/ EA
Description
This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 5 wires and has a 5 pins M12 straight female connector with a metal collar. It is designed in polyvinyl chloride for general use. Its rated operational voltage is 60V/AC or 75V/DC and its nominal current is 3A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), and can be temporarily immersed in water (IP67). This cable has a length of 2m and a diameter of 4.6mm. It is made up of 5 wires, each section of which is 0.25 mm². Its color is black and its weight is 0.1kg. It is intended for general use like machines with low environmental and mechanical stresses (-25°C to +80°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 4.6 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 3 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 5 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length2 m
Cable Composition5 x 0.25 mm²
Net Weight0.1 kg
Specifications
- Series Name
- general purpose
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
