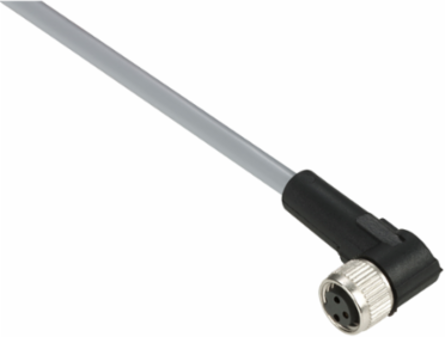

Telemecanique Sensors XZCPV0666L2 Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 2 m

MPN: XZCPV0666L2
PPN: TES-XZCPV0666L2
UNSPSC: 39121528

$33.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This connection cable has a PVC cable (2 meter cable). This pre-wired pigtail cable with one connector helps you to reduce your stock of spare process parts.

Documentation & Downloads

Specifications

Key Specifications

Series Name	general purpose
Accessory / Separate Part Category	cabling accessory

Range Of Product	Telemecanique Cabling components
Accessory / Separate Part Type	pre-wired connectors

Complementary

Collar Material	metal
Cable Outer Diameter	4.6 mm
Wire Insulation Material	PVC
Cable Connector Fixing	screw-on
Line Rated Current	3 A
Status Led	without
Contact Resistance	5000 µOhm

Electrical Connection	elbowed female connector M8, 3 pins
Minimum Insulating Resistance	1 GΩ
[Ue] Rated Operational Voltage	60 V AC \|\| 75 V DC
Cable Length	2 m
Cable Composition	3 x 0.25 mm²
Net Weight	0.084 kg

Environment

Product Certifications	cULus
Ambient Air Temperature For Storage	-25-80 °C

Ambient Air Temperature For Operation	-25-80 °C static
Ip Degree Of Protection	IP65 \|\| IP67

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
