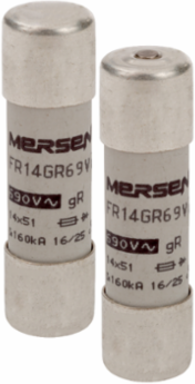

Mersen D1017178 Protistor Size 14x51 gR Fuse 2A 690V AC with Trip Indicator
- MPN: D1017178
- PPN: FER-D1017178
CAD
$118.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These Protistor® size 14x51 have been designed to protect power semi conductors, complying with standard IEC 60269-1 and -4. They are extremely high interrupting rating fuses: 690VAC, with large band of ratings (current rating 1 to 63A). Two models are existing: with or without trip-indicator.
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Clip |
| Melting I2t | 0.9 A²s |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.01 in |
| Ampere Rating | 2 A |
|---|---|
| AC or DC | AC |
| Fuse Size | 14x51 |
| Clearing I2t At Rated Voltage | 1.8 A²s |
| AC Max I.R./Breaking Capacity: I1 | 160 kA |
| Indication System Type | Striker |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 1.75 W |
| Weight | 0.044 lb |
