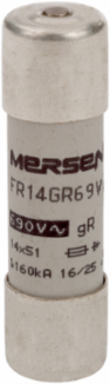

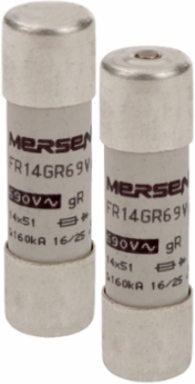

Mersen S1017191 Protistor® 14x51 gR Fuse 40A 690VAC, Ceramic Insulation, Ferrule Connection
- MPN: S1017191
- PPN: FER-S1017191
CAD
$227.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These Protistor® size 14x51 have been designed to protect power semi conductors, complying with standard IEC 60269-1 and -4. They are extremely high interrupting rating fuses: 690VAC, with large band of ratings (current rating 1 to 63A). Two models are existing: with or without trip-indicator.
Specifications
Key Specifications
- Rated voltage AC IEC
- 690 V
- ROHS Compliant
- Yes
- Speed/Characteristic
- gR
- Mounting
- Clip
- Melting I2t
- 210 A²s
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Length
- 2.01 in
Ampere Rating40 A
AC or DCAC
Fuse Size14x51
Clearing I2t At Rated Voltage1050 A²s
AC Max I.R./Breaking Capacity: I1160 kA
Indication System TypeStriker
Connection/Terminal TypeFerrule
Power Dissipation at Rated Current Value7.5 W
Weight0.044 lb
