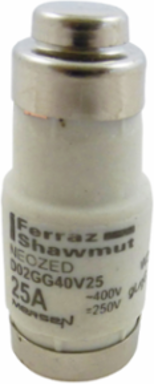

Mersen W213160 Neozed D0 Fuse-Link gG, 25A, 400V AC/DC, D02, Yellow, Ceramic Insulation
- MPN: W213160
- PPN: FER-W213160
CAD
$22.03
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

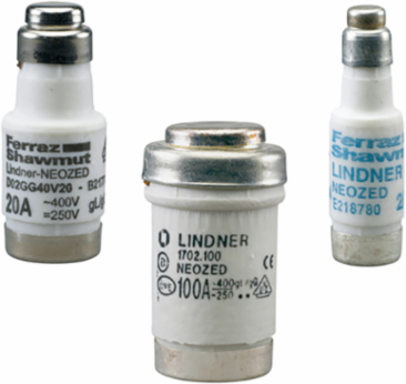

The D0 fuse-system is installed in low voltage distribution units, where fuse-links are accessible to non trained persons and can also be replaced by them. The system is the most modern of the screw systems and designed for 400VAC/250VDC networks. The D0 fuse range comprises the standardized fuse sizes D01, D02 and D03.
Specifications
Key Specifications
| Rated voltage AC IEC | 400 V |
|---|---|
| Ampere Rating | 25 A |
| ROHS Compliant | Yes |
| Speed/Characteristic | gG |
| Mounting | Clip |
| Indication System | Yes |
| Body/Insulating Material | Ceramic |
| Length | 1.42 in |
| Rated voltage DC IEC | 250 V |
|---|---|
| Identification Color Code | Jaune |
| AC or DC | AC/DC |
| Fuse Size | D02 |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | Colored indicator flag Visual Indicator |
| Power Dissipation at Rated Current Value | 3 W |
| Weight | 0.026 lb |
