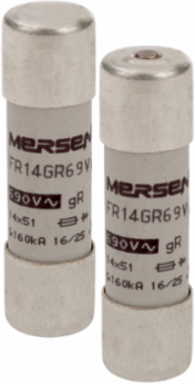

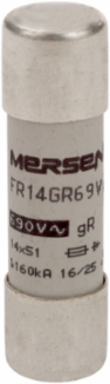

Mersen G1017204 Protistor® 14x51 gR Fuse, 25 A, 690 V, Ceramic Body, Silver-Plated Copper Terminals

MPN: G1017204
UPC: 3605340506976
PPN: FER-G1017204

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$97.17/ EA

Qty:

Loading add to cart quantity...

Description

These Protistor® size 14x51 have been designed to protect power semi conductors, complying with standard IEC 60269-1 and -4. They are extremely high interrupting rating fuses: 690VAC, with large band of ratings (current rating 1 to 63A). Two models are existing: with or without trip-indicator.

Specifications

Rated voltage AC IEC: 690 V

ROHS Compliant: Yes

Speed/Characteristic: gR

Mounting: Clip

Melting I2t: 52.5 A²s

Connection/Terminal Material: Silver-Plated Copper

Body/Insulating Material: Ceramic

Length: 2.01 in

Ampere Rating25 A

AC or DCAC

Fuse Size14x51

Clearing I2t At Rated Voltage385 A²s

AC Max I.R./Breaking Capacity: I1160 kA

Connection/Terminal TypeFerrule

Power Dissipation at Rated Current Value5.95 W

Weight0.044 lb
