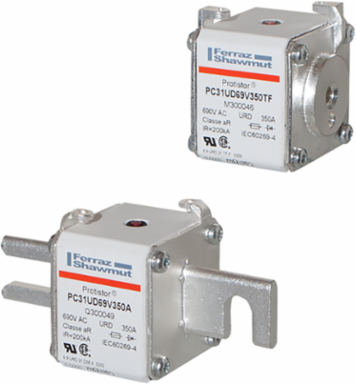

Mersen R300050 Protistor® Fuse-Link 31 Size, 350A, 690V AC, Ultra Fast Acting, Silver-Plated Copper Terminals
Mersen R300050 Protistor® Fuse-Link 31 Size, 350A, 690V AC, Ultra Fast Acting, Silver-Plated Copper Terminals
- MPN: R300050
- UPC: 3605340322743
- PPN: FER-R300050
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$591.83/ EA
Description
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Specifications
- Rated voltage AC UL
- 700 V
- Ampere Rating
- 350 A
- AC or DC
- AC
- Fuse Size
- 31
- Clearing I2t At Rated Voltage
- 61000 A²s
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- Striker
- Connection/Terminal Type
- Slotted Blades
- Power Dissipation at Rated Current Value
- 67 W
- Length
- 5.08 in
- Weight
- 0.884 lb
Rated voltage AC IEC690 V
ROHS CompliantYes
Speed/CharacteristicaR
MountingBolted
Melting I2t10300 A²s
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Width2.01 in
Height2.22 in
