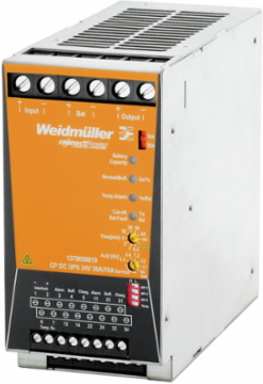

Weidmuller 1370050010 CP DC UPS 24V 20A/10A

CP DC UPS 24V 20A/10A - https://media.province-electric.com/web-weidmueller/2019q4/743879ab95f7282b4262fb26a5070ab9e5780140-medium.png

MPN: 1370050010
PPN: WDM-1370050010

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$510.24/ EA

Qty:

Loading add to cart quantity...

Description

UPS control unit

Specifications

Battery Module

Parallel connection option: Yes, max. 2

Storage medium: 1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch

Rated voltage24 V

General Data

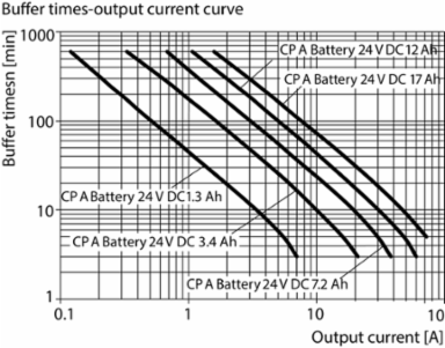

Buffer times: Depending on the connected battery

Current limiting: > 120% IN

Housing version: Metal, corrosion resistant

MTBF: > 500,000 h in accordance with IEC 61709 (SN29500)

Operating temperature: -25 °C...70 °C

Protection against reverse voltages from the load: 32…34 V DC

Short-circuit protection: Yes

Surge voltage category: III

Clip-in footmetal

Degree of efficiency≥ 96% normal mode, battery is being charged, ≥ 98% normal mode, battery is charged, ≥ 98% buffer mode

Humidity5...95 %, no condensation

Mounting position, installation noticeHorizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.

Power loss< 10 W

Protection degreeIP20

Storage medium1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, Selectable with rotary switch

Signalling

Floating contact: Yes

Status relay (max. load): Fault (alarm) (30 V AC/DC 0.1 A), Battery operation (buff.) (30 V AC/DC 0.1 A), Laden (Charg.) (30V AC/DC 0,1A)

Status indicatorThree-colour LED: Battery capacity >85% green, >40% yellow, >20% red, <20% red (Flashing), Green/yellow LED: normal / buffering, Yellow/red LED: temperature alarm / alarm, Yellow/red LED: switch-off / battery fault

Connection Data (Input)

Conductor cross-section, AWG/kcmil , max.: 6

Conductor cross-section, flexible , min.: 0.5 mm²

Conductor cross-section, rigid , min.: 0.5 mm²

Tightening torque, max.: 1.5 Nm

Wire connection cross section, flexible (input), max.: 16 mm²

Conductor cross-section, AWG/kcmil , min.26

Conductor cross-section, rigid , max.16 mm²

Reverse polarity protectionYes

Tightening torque, min.1.2 Nm

Approvals

Approvals: CE, CULUS, DNV GL, EAC

UL File Number Search: E258476

ROHSConform

Dimensions And Weights

Width: 66 mm

Height: 130 mm

Depth: 150 mm

Net weight: 1,146 g

Width (inches)2.598 inch

Height (inches)5.118 inch

Depth (inches)5.905 inch

Electrical Safety (Applied Standards)

Electrical machine equipment: Acc. to EN60204

Protection against dangerous shock currents: Acc. to VDE0106-101

Safety extra-low voltage: EN 60950

For use with electronic equipmentAcc. to EN50178 / VDE0160

Protective separation / protection against electrical shockVDE0100-410 / acc. to DIN57100-410

Safety transformers for switch-mode power suppliesAccording to EN 61558-2-16

Emc / Shock / Vibration

Noise emission in accordance with EN55032: Class B

Interference immunity test acc. to: EN 61000-4-2 (ESD)|EN 61000-4-3 and EN 61000-4-8 (fields)|EN 61000-4-4 (burst)|EN 61000-4-5 (surge)|EN 61000-4-6 (conducted)|EN 61000-4-11 (dips)

Vibration resistance IEC 60068-2-62.3 g

Shock resistance IEC 60068-2-2730 g in all directions

Input

DC current consumption: max. 200 mA (without battery), max. 0.5 A (with fully charged battery)

Input current: ≤ 13A (for 10A), ≤ 23A (for 20A)

Max. approved input current: 28 A

Wire connection method: Screw connection

DC input voltage range20...30 V DC

Input fuse (internal)Yes

Rated input voltage24 V DC

Operating Interfaces And Control Inputs

DIP switch: Inversion of transistor outputs, Operation without temperature probe

Remote disconnection (Interlock): Yes

Selector switch buffer times: 0.5 min, 1 min, 3 min, 5 min, 10 min, 20 min, 30 min, 45 min, ∞, ∞ w/0

Output current selector switch20 A, 10 A

Selector switch battery1.3 Ah, 3.4 Ah, 7.2 Ah, 12 Ah, 17 Ah, No Battery, Service

Temperature probeNTC 100 kΩ

Integrated Battery Charger

Battery availability test: every minute

Charging feature: IU characteristic curve

Temperature coefficient: 48 mV / °C

Charging current0.15 CA

Charging voltage (temperature compensated)27, 48 V @ 20°C

Classifications

ETIM 6.0: EC002850

eClass 9.0: 27-04-06-92

eClass 10.0: 27-04-06-92

ETIM 7.0EC002850

eClass 9.127-04-92-01

Output

Continous output current @ U: 24 A @ 45 °C, 20 A @ 60 °C, 15 A @ 70 °C

Output current, max.: 24 A

Overload protection: Yes

Protection against inverse voltage: Yes

Reserve capacity @ U: 24 A for 1 min, ED = 5 %

Temperature coefficient: 48 mV / °C

Wire connection method: Screw connection

Nominal output current for U20 A @ 60 °C

Output voltageVo = Vin - 0.2 V normal operation (Imax), Vo = Vin - 0.3 V battery supply (I max)

Parallel connection optionYes, max. 2, Yes, with diode module

Rated output voltage24 V DC ± 1 %

Residual ripple, breaking spikes< 50 mVPP @ 24 V DC, IN

Temperature probeNTC 100 kΩ

Connection Data (Signal)

Wire connection cross-section, flexible (signal), max.: 16 mm²

Wire connection method: Screw connection

Wire cross-section, AWG/kcmil , min.: 26

Wire cross-section, solid , min.: 0.5 mm²

Wire connection cross-section, flexible (signal), min.0.5 mm²

Wire cross-section, AWG/kcmil , max.12

Wire cross-section, solid , max.16 mm²

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Insulation Coordination

Insulation voltage: 1 kV DC

Protection class: III, with no ground connection, for SELV

electrical isolation, input-earth: 1 kV

Pollution severity2

Surge voltage categoryIII

electrical isolation, output-earth1 kV

Connection Data (Output)

Conductor cross-section, AWG/kcmil , max.: 6

Conductor cross-section, flexible , max.: 16 mm²

Conductor cross-section, rigid , max.: 16 mm²

Tightening torque, max.: 1.5 Nm

Conductor cross-section, AWG/kcmil , min.26

Conductor cross-section, flexible , min.0.5 mm²

Conductor cross-section, rigid , min.0.6 mm²

Tightening torque, min.1.2 Nm

Temperatures

Humidity: 5...95 %, no condensation

Operating temperature, min.: -25 °C

Storage temperature, min.: -40 °C

Storage temperature: -40 °C...85 °C

Operating temperature, max.70 °C

Storage temperature, max.85 °C

Operating temperature-25 °C...70 °C

Ratings Iecex/Atex/Cul

Certificate no. (cULus): E258476
