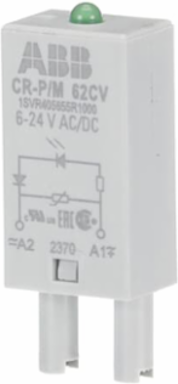

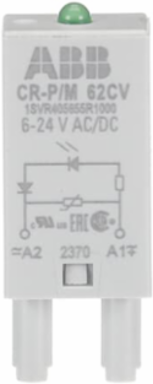

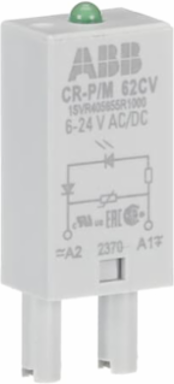

ABB 1SVR405655R1000 CR-P/M 62CV Pluggable Module with LED Green, 6-24V AC/DC, 24mm Height
ABB 1SVR405655R1000 CR-P/M 62CV Pluggable Module with LED Green, 6-24V AC/DC, 24mm Height
- MPN: 1SVR405655R1000
- PPN: ABB-1SVR405655R1000
- UNSPSC: 39122331
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$16.14/ EA
Description
The CP-P/M 62CV plug-in module is a pluggable funtion module for sockets of the CR-P and CR-M range. This module provides overvoltage protection and a green LED indication. The rated control supply voltage is 6-24 V AC / DC.
Specifications
Dimensions
- Product Net Width
- 13 mm
- Product Net Depth / Length
- 9 mm
Product Net Height24 mm
Product Net Weight0.003 kg
Technical
- Function
- Accessory for interface relays CR-MAccessory for interface relays CR-P
- Sub-Function 2
- Overvoltage protectiongreen LED
- Output
- none
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61984UL 508
Sub-FunctionPluggable function module for pcb and miniature relay sockets
Rated Control Supply Voltage (Us)6 ... 24 V AC/DC
Output Signalnone
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371692
- E-Number (Sweden)
- 4005391
ETIM 9EC002586 - Accessories/spare parts for switching relay
E-Number (Finland)2712735
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85480090
