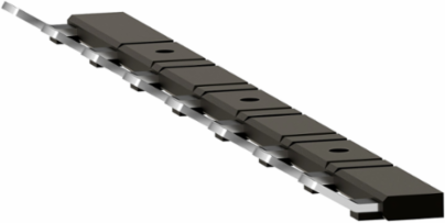

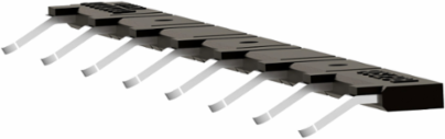

Schneider Electric RGZS08 Harmony Electromechanical Relay Bus Jumper 8 Poles, 0.006kg
- MPN: RGZS08
- PPN: SCH-RGZS08
- UNSPSC: 26121541
CAD
$5.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Harmony Electromechanical Relays range, an offer of connection accessories for RGZE screw sockets. This bus jumper comes with 8 poles. It weighs 0.006kg. It is suitable for industrial, automation and control applications. It is compatible with inputs (A1, A2) of RSZE screw sockets (RSZE1S35M, RSZE1S48M). It is sold in lots of 10. The Harmony electromechanical relay features flexible add-on accessories like protection module, timing module, maintaining clamp and marking legend. The Harmony electromechanical relay includes interface, miniature and power relays from 1 CO to 4 CO contacts, up to 30A.
Features
- High performance ensures machine and system availability
- Reduces the size of enclosure, increases machine reliability
- Easy selection with one reference for the complete set
- Simplicity of use with test button and visual indicators
- Robust
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Weight | 6 g |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase A4 | 0.0011664707469075618, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.00003438452963793414, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Or Component Type | bus jumper |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Database Version | 2024-01 |
| Accessory / Separate Part Category | connection accessory |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.013892863249327187 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.03930638209711042 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Electromechanical Relays |
| Sale Per Indivisible Quantity | 10 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | interface relay socket |
| Customs Code | 8536904000 |
| Functional Unit Description | RGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 77.5 mm x 73 mm x 15.8 mm and product is adhering to international standards like CSA C22.2 No 14, IEC 61984 ,UL 508. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 98 |
Environment Attributes Main
| Product Compatibility | RGZE - socket for connecting inputs A1, A2 only), RSZE - socket for connecting inputs A1, A2 only) |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | "ENVPEP2502016EN" |
| Ip Degree Of Protection | IP00 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-01-02 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0544001006229831 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | "ENVPEP2502016EN" |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | bus jumper |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC002586 |
|---|---|
| ETIM 10 | EC002586 |
| ETIM 9 | EC002586 |
|---|
