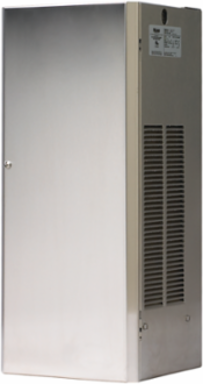

nVent Hoffman CR230216G017 ProAir Harsh Environment Outdoor with Cntr 3R CR23, 1600BTU 115V, Brushed, SS304
- MPN: CR230216G017
- UPC: 783510455491
- PPN: HOF-CR230216G017
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor with Cntr 3R CR23, CR230216G017 item is rated 1600BTU 115V with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 254
- Nominal Voltage
- 115
- Number of Phases
- 1
- Nominal Capacity Watts
- 469
- Protection Rating
- NEMA Type 12
- Material
- Stainless Steel 304
- Thickness (T)
- 1.21
- Weight
- 72
- Voltage Rating
- 115V
- Amperage Rating
- 4.0 A
- Frequency Rating
- 50/60 Hz
- Operating Temperature
- 131 deg F
Height (H)584
Depth (D)222
Remote Access ControlNo
Nominal Capacity Btu/h1,600
Max Current4
Product FamilyProAir
FinishBrushed #3
NEMA Rating12 Indoor, dust-resistant
Sub BrandProAir
BTU Rating1,600
Power469 W
Housing MaterialStainless Steel
