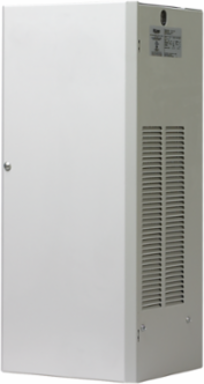

Nvent Hoffman CR230226G002 ProAir Harsh Environment Indoor CR23, 1600BTU 230V, Lt Gray, Steel
Nvent Hoffman CR230226G002 ProAir Harsh Environment Indoor CR23, 1600BTU 230V, Lt Gray, Steel
- MPN: CR230226G002
- UPC: 783510204792
- PPN: HOF-CR230226G002
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor CR23, CR230226G002 item is rated 1600BTU 230V with material of Steel colored Lt Gray.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 254
- Nominal Voltage
- 230
- Number of Phases
- 1
- Nominal Capacity Watts
- 508
- Protection Rating
- NEMA Type 12
- Material
- Mild Steel
- Color Code
- RAL 7035
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- ProAir
- Voltage Rating
- 230 VAC
- Amperage Rating
- 2.5 A
- Frequency Rating
- 50/60 Hz
- Operating Temperature
- 131 deg F
Height (H)584
Depth (D)222
Remote Access ControlNo
Nominal Capacity Btu/h1,733
Max Current1.7
Product FamilyProAir
FinishPowder Coated
Thickness (T)1.21
Weight50
ModelSurface Mounted
BTU Rating1,600
Power469 W
Housing MaterialMild Steel
ColorLt Gray
