Nvent Hoffman S060316G050 SpectraCool Slim Fit Indoor AC S06, 300W 115V No RAC, Light Gray, Steel
Nvent Hoffman S060316G050 SpectraCool Slim Fit Indoor AC S06, 300W 115V No RAC, Light Gray, Steel
- MPN: S060316G050
- UPC: 783510281731
- PPN: HOF-S060316G050
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
Description

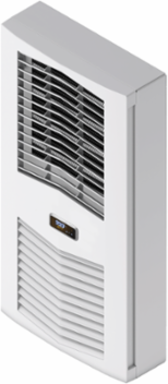

SpectraCool SlimFit ACs designed with 3 space-saving mounting options to maximize footprint. This SpectraCool Slim Fit Indoor AC S06, S060316G050 item is rated for 300W 115V No RAC with a material of Steel colored Light Gray.
Features
- Slim Fit Design with three mounting options; fully recessed, partial recessed and surface mount
- Aesthetic design plastic cover to optimize air flow
- R134a refrigerant
- Voltage: 230 V (50/60 Hz), 115 V (50/60 Hz) and 400/460 V 3-phase (50/60 Hz)
- Operating temperature range from 50 F / 10 C to 131 F / 55 C
- Easy filter replacement for extremely dusty environments
- Dust resistant coils for filterless operation
- Active condensate management to prevent dripping water
- Energy efficient rotary compressor
- Terminal block power input
- Standard cutout dimension for easy exchange
- Every unit functionally tested before shipping
- Standard Air Conditioners are compatible with an enclosure door switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 279
- Nominal Voltage
- 115
- Nominal Capacity Btu/h
- 1,000
- Operating Temperature
- 10
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Thickness (T)
- 1.21
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- SpectraCool
- Color
- Lt Gray
Height (H)549
Depth (D)140
Remote Access ControlNo
Nominal Capacity Watts300
Max Current13
MaterialMild Steel
Color CodeRAL 7035
Product FamilySpectraCool Slim Fit
Weight35
Voltage Rating100 - 120 VAC
