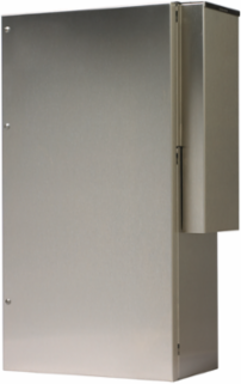

nVent Hoffman CR290226G058 ProAir Harsh Environment Outdoor 3R CR29, 2700BTU 230V, Brushed, SS304
- MPN: CR290226G058
- UPC: 783510220969
- PPN: HOF-CR290226G058
- UNSPSC: 40101701
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor 3R CR29, CR290226G058 item is rated 2700BTU 230V with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Btu/h | 2,700 |
| Number of Phases | 1 |
| Operating Temperature | -40 |
| Protection Rating | NEMA Type 4X |
| Height (H) | 749 |
| Depth (D) | 219 |
| Thickness (T) | 1.21 |
| Weight | 120 |
| Color | Gray |
| Nominal Capacity Watts | 791 |
|---|---|
| Nominal Voltage | 230 |
| Material | Stainless Steel 304 |
| Remote Access Control | No |
| Product Family | ProAir |
| Width (W) | 400 |
| Finish | Brushed #3 |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Sub Brand | ProAir |
