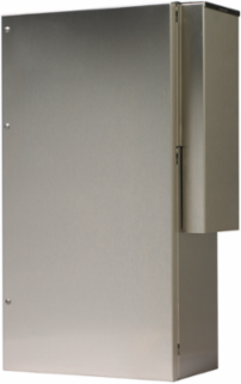

Nvent Hoffman CR290226G045 ProAir Harsh Environment Indoor/Outdoor 4X CR29, 2700BTU 460V 1PH, Brushed, SS304
Nvent Hoffman CR290226G045 ProAir Harsh Environment Indoor/Outdoor 4X CR29, 2700BTU 460V 1PH, Brushed, SS304
- MPN: CR290226G045
- UPC: 783510223144
- PPN: HOF-CR290226G045
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor/Outdoor 4X CR29, CR290226G045 item is rated 2700BTU 460V 1PH with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Nominal Voltage
- 460
- Number of Phases
- 1
- Nominal Capacity Watts
- 791
- Max Current
- 1.9
- Product Family
- ProAir
- Finish
- Brushed #3
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- ProAir
Height (H)749
Depth (D)219
Remote Access ControlNo
Nominal Capacity Btu/h2,700
Operating Temperature-40
Protection RatingNEMA Type 4X
MaterialStainless Steel 304
Thickness (T)1.21
Weight130
ColorGray
