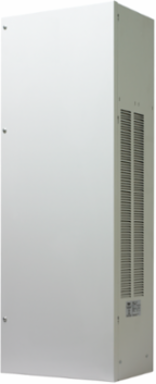

nVent Hoffman CR430826G089 ProAir Harsh Environment Indoor CR43, 8000BTU 460V, Lt Gray, Steel
- MPN: CR430826G089
- UPC: 783510228347
- PPN: HOF-CR430826G089
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor CR43, CR430826G089 item is rated 8000BTU 460V with material of Steel colored Lt Gray.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 400 |
| Nominal Voltage | 460 |
| Number of Phases | 1 |
| Nominal Capacity Watts | 2,344 |
| Max Current | 2.5 |
| Product Family | ProAir |
| Finish | Powder Coated |
| Thickness (T) | 1.21 |
| Weight | 163 |
| Voltage Rating | 460 V |
| Amperage Rating | 2.5/2.5 A |
| Frequency Rating | 50/60 Hz |
| Color | Gray |
| Height (H) | 1,100 |
|---|---|
| Depth (D) | 260 |
| Remote Access Control | No |
| Nominal Capacity Btu/h | 8,000 |
| Operating Temperature | -40 |
| Protection Rating | NEMA Type 12 |
| Material | Mild Steel |
| Color Code | RAL 7035 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Sub Brand | ProAir |
| BTU Rating | 8,000 |
| Power | 958/1182 W |
| Phase | 1 |
