Weidmuller 1423500000 CS1,6R22-20 SN I1,8
- MPN: 1423500000
- PPN: WDM-1423500000
CAD
$0.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

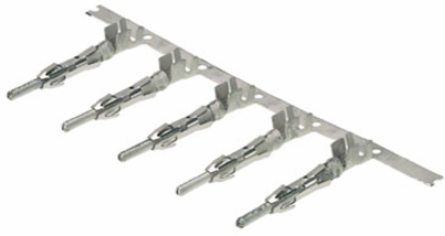

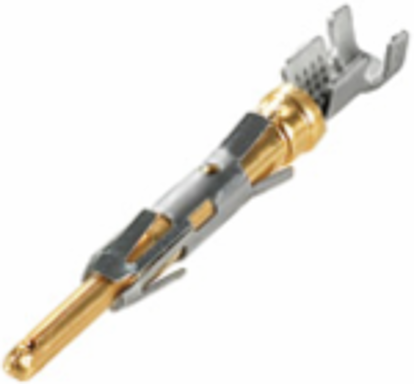

PCB plug-in connector, Crimp contact, Reel packaged, Pin – standard, tinned, Max. clamping range : 0.5 mm²
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|

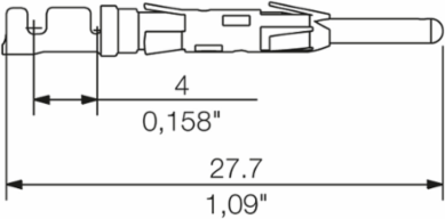

Dimensions And Weights
| Net weight | 0.83 g |
|---|
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|
Material Data
| Contact material | CuZn |
|---|---|
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Contact surface | tinned |
|---|---|
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
Classifications
| ETIM 6.0 | EC000796 |
|---|---|
| eClass 9.0 | 27-44-02-04 |
| eClass 10.0 | 27-44-02-04 |
| ETIM 7.0 | EC000796 |
|---|---|
| eClass 9.1 | 27-44-02-04 |
| UNSPSC | 30-21-19-23 |
System Parameters
| Product family | OMNIMATE Power - Powerbus series |
|---|---|
| Number of poles | 1 |
| Stripping length | 4 mm |
| Wire connection method | Crimp connection |
|---|---|
| Volume resistance | 3.30 mΩ |
Packing
| Packaging | Reel |
|---|---|
| VPE width | 600 mm |
| VPE length | 60 mm |
|---|---|
| VPE height | 580 mm |
Notes
| Notes | The long pins can be used with the standard pins as leading contacts. |
|---|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
Conductors Suitable For Connection
| Clamping range, min. | 0.34 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 22 |
| Outer diameter of insulation, min. | 1.1 mm |
| Max. clamping range | 0.5 mm² |
| Clamping range, max. | 0.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 20 |
| Outer diameter of insulation, max. | 1.8 mm |
