nVent Hoffman

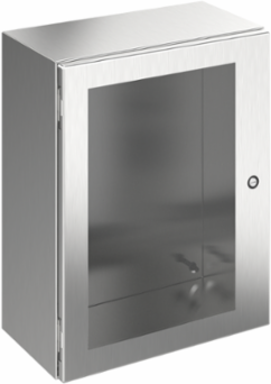

nVent Hoffman CSD24208WSS Concept Window Door 24x20x8 Inch, Stainless Steel, NEMA 4X, IP66

Concept Window Door 24x20x8 Inch, Stainless Steel, NEMA 4X, IP66
  • MPN: CSD24208WSS
  • UPC: 783510117702
  • PPN: HOF-CSD24208WSS
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3832.77/ EA

Description

Concept stainless steel enclosure for indoor/outdoor use includes window door for internal viewing. This Concept Window Door 1/4 Turn Latch Type 4X, CSD24208WSS item measures 24X20x8 inch with a material of Stainless 304, finish Brushed.

Features

  • Window pre-mounted in door of enclosure.
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hidden hinges promote clean aesthetic appearance
  • Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
  • Installation instructions
  • Clear polycarbonate window

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
508
Protection Rating
NEMA Type 12
Finish
Brushed #4
Door Thickness
1.59
Mounting (G x H)
572 x 470
IP Rating
IP66
Weight
34
Sub Brand
Concept
Size
24.00x20.00x8.00 in
Height (H)610
Depth (D)203
Product FamilyConcept
Body Thickness1.59
Window Size (M x N)20.74 x 15.10
Latch Quantity1
NEMA Rating4X Watertight, corrosion-resistant
Latch TypeQuarter-Turn
MaterialStainless Steel

Downloads
