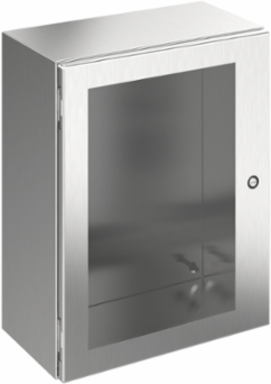

nVent Hoffman CSD242410WSS Concept Window Door 1/4 Turn Latch Type 4X, 24x24x10 Inch, Stainless Steel 304
nVent Hoffman CSD242410WSS Concept Window Door 1/4 Turn Latch Type 4X, 24x24x10 Inch, Stainless Steel 304
- MPN: CSD242410WSS
- UPC: 783510128852
- PPN: HOF-CSD242410WSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4138.62/ EA
Description
Concept stainless steel enclosure for indoor/outdoor use includes window door for internal viewing. This Concept Window Door 1/4 Turn Latch Type 4X, CSD242410WSS item measures 24X24X10 inch with a material of Stainless 304, finish Brushed.
Features
- Window pre-mounted in door of enclosure.
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
- Installation instructions
- Clear polycarbonate window
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Door Thickness
- 1.98
- Mounting (G x H)
- 572 x 572
- Weight
- 42
- Sub Brand
- Concept
- Size
- 24.00x24.00x10.00 in
Height (H)610
Depth (D)254
Product FamilyConcept
Body Thickness1.59
Window Size (M x N)20.74 x 17.68
IP RatingIP66
Latch TypeQuarter-Turn
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
