nVent Hoffman CSD362412LGEMC Concept EMC Enclosure 36.00x24.00x12.00 Inch, IP66, Powder Coated Steel

MPN: CSD362412LGEMC
UPC: 783510257798
PPN: HOF-CSD362412LGEMC
UNSPSC: 39121324

$3174.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

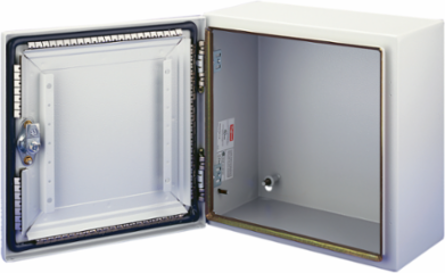

Concept EMC enclosures protect components or contains EMI/RFI signals depending on your application. This Concept EMC Enclosure Type 4, CSD362412LGEMC item measures 36.00x24.00x12.00 inches with a material of Steel colored Lt Gray.

Features

Seams continuously welded and ground smooth
Minimum width body flange provides maximum door opening
External formed body flange channels away liquids
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Removable door with hidden hinges for clean, aesthetic appearance
Door opens 210 degrees
Corner-formed door
Hinge mounting brackets for wire management or optional accessories
Stainless steel spring finger EMI/RFI gasket
Quarter-turn latches
Grounding stud on body
Door bars provided for wire management and bonding
Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Illustrated instruction sheet

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	610
Protection Rating	NEMA Type 12
Finish	Powder Coated
Body Thickness	1.52
Mounting (G x H)	876 x 572
IP Rating	IP66
Sub Brand	Concept
Size	36.00x24.00x12.00 in
NEMA Rating	4 Watertight
